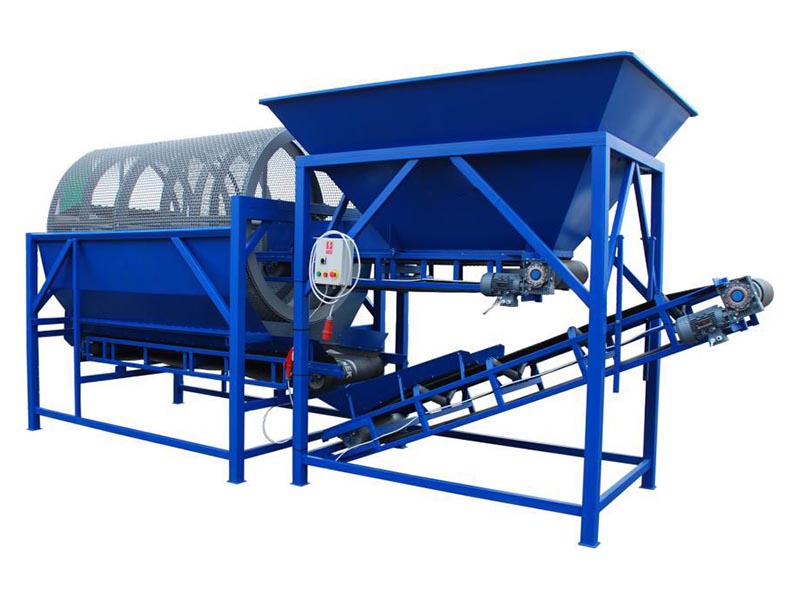

TROMMEL SCREENER WITH HOPPER AND DISCHARGE TAPE
160cm rotor diameter, under-sieve tape and sieved fraction discharge
-Diameter drum screen 160cm
-Screen drum length 200/300/400 cm
-Measurements of knit holes on request

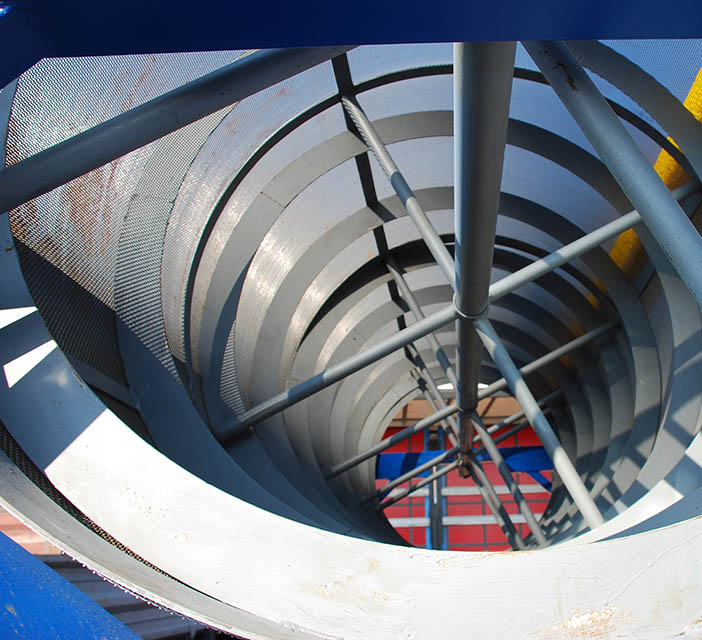

-Internal mixers arms and exhaust spiral
-Horizontal fraction of small fraction discharge under rotating drum

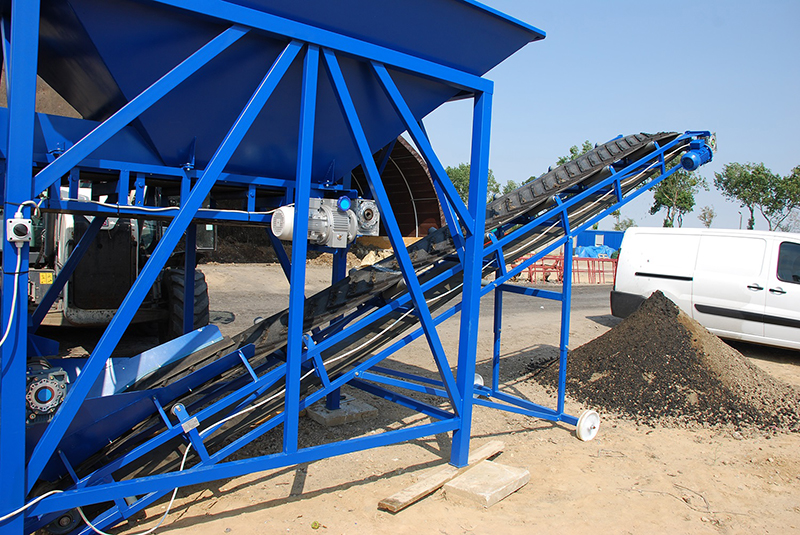

-Oblique withdrawal ribbon for small fraction displacement
-Equipped with a belt loading feeder with a capacity of 3m³ of 300cm x 180cm.
-Feeder unloading belt with adjustable speed
-Structural structures in thick metal profile
-Three-phase 380v electric motors
