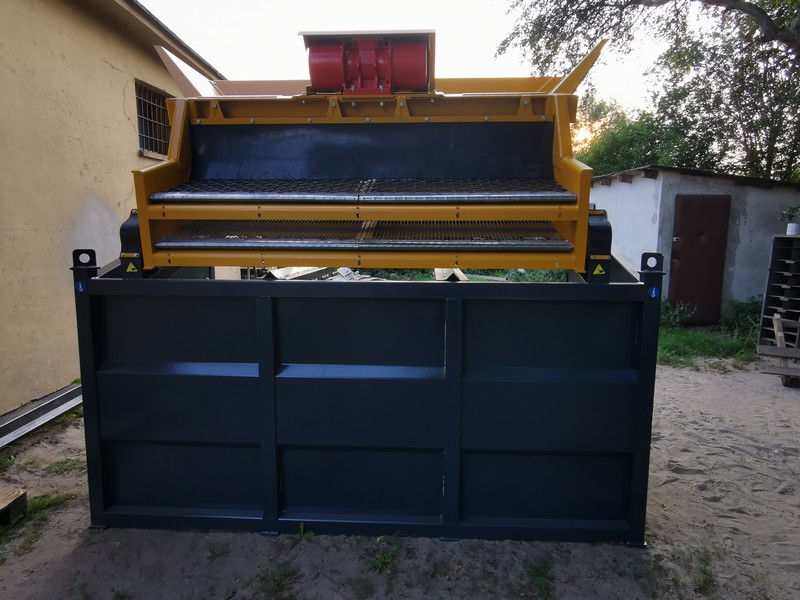

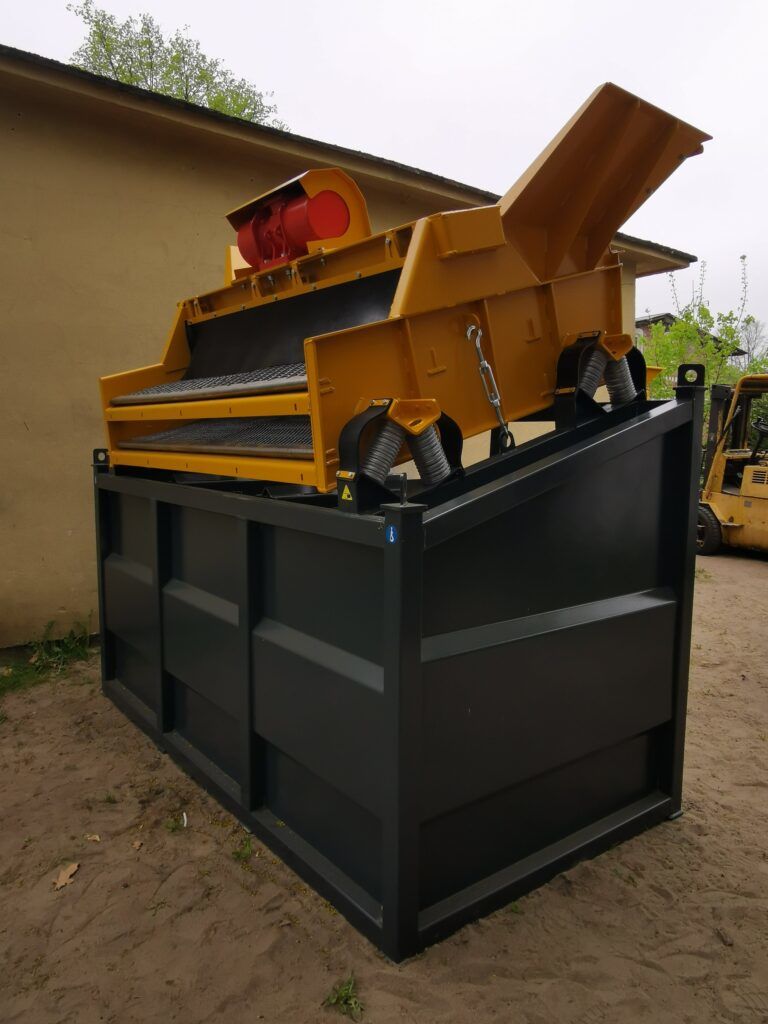

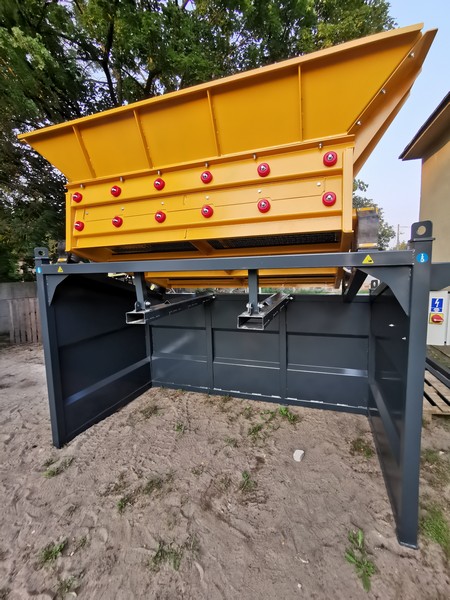

VIBRATING SCREENER MK40

The perfect solution for screening soil, sand, rubble, coal and other bulk materials

The perfect solution for screening soil, sand, rubble, coal and other bulk materials.

The device is powered by a 400V electric motor with a power of 1.5kW

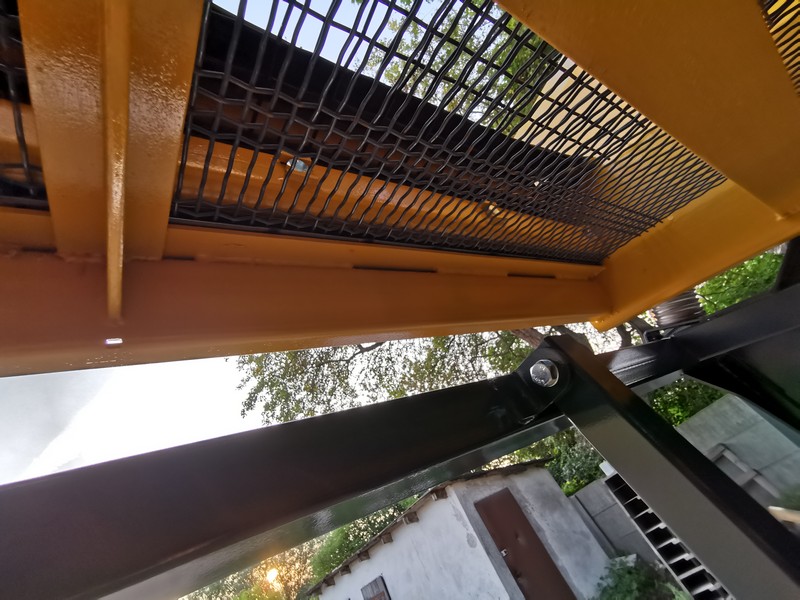

The sieve is equipped with one or two sieves

The sieving area of the sieves is 3 m2

The perfect combination of performance and mobility. The relatively small size and self-weight make it easy to carry the screen to any location.

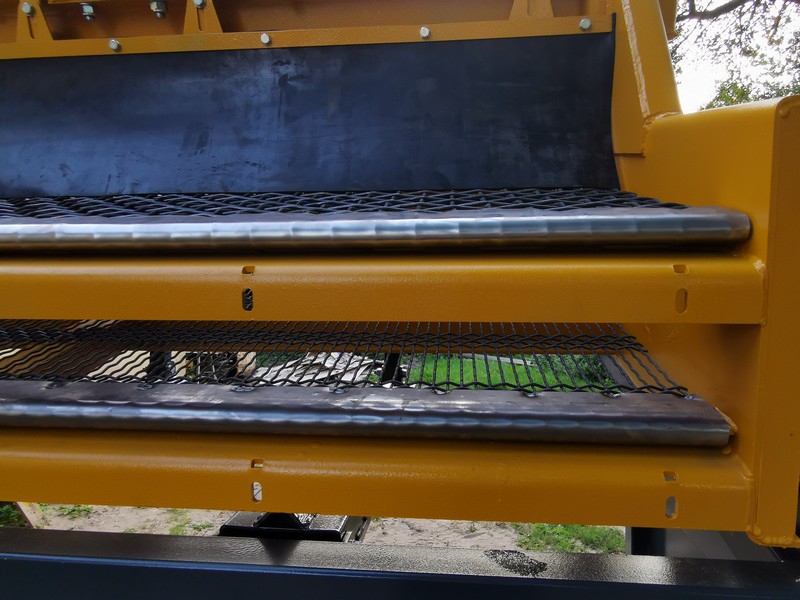

The sieves have a longitudinal tension.

Very quick and easy sieve replacement, just unscrew 3 screws for each sieve.

Download datasheets

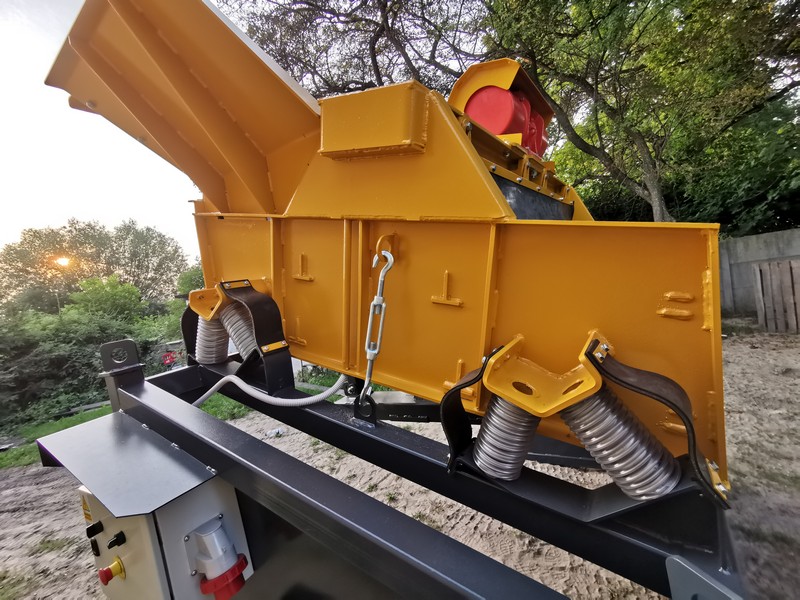

1.5 kW vibrator

Moment: 2083 Kg

Screening mesh dimensions: 1 × 1.5 m

Sieving area: 3 m2

Productivity:

compost 8t / h - 13m3 / h

wood chips 7t / h - 27m3 / h

clay 20t / h - 41m3 / h

stone 40t / h - 22m3 / h

gravel 45t / h - 30m3 / h

Technical parameters:

Productivity 8 - 45 t / h
Moment 2083 kg
Sieving area 3m2
Power supply 400V 1,5kW
Weight 1400 kg
Width 1550 mm
Length 2850 mm
Height 2680 mm
